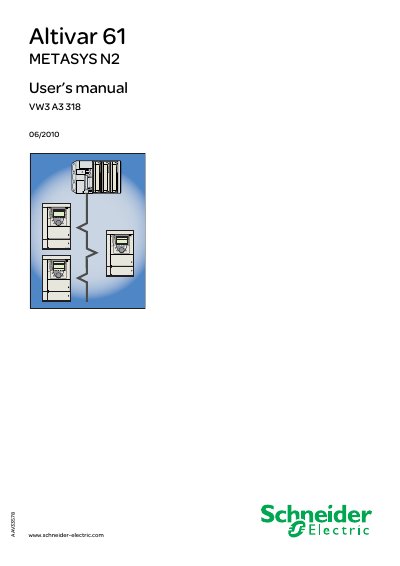

This document is the Altivar 61 METASYS N2 User’s manual, which introduces the features and characteristics of the product
This manual provides installation, configuration, and operation instructions for the METASYS N2 option card (VW3 A3 318) used with the Schneider Electric Altivar 61 variable‑speed drive. It covers hardware setup, wiring, communication parameters, diagnostics, and network objects.
The document also includes safety warnings, quick‑start procedures, and detailed tables of analog and digital network objects that can be accessed via the Metasys N2 network, enabling control, monitoring, and fault management of the drive. This manual is written in Chinese.
| OUTPUTSPEED | Output speed rpm |
|---|---|
| OUTPUTFREQ | Output frequency Hz |
| DCBUSVOLT | DC bus voltage V |
| CURRENT | Motor current A |
