This document introduces an nVidia motherboard, model nF590 SLI MCP, compatible with AMD Soc AM2 (940-pin) processors. Additionally, the document emphasizes on handling procedures for static electricity protection and includes a disclaimer of warranties.

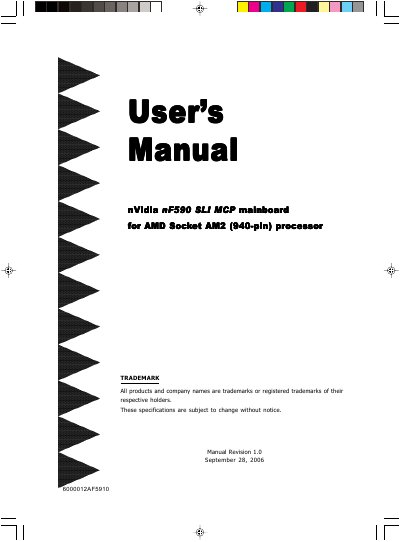

This manual covers the full range of information needed to install and operate the Nvidia nF590 SLI MCP ATX mainboard. It includes package contents, mainboard features, a detailed system block diagram, and step‑by‑step installation instructions for the CPU, memory, and expansion cards.
Additional sections describe BIOS configuration, driver and utility installation, Ghost BIOS recovery, POST code troubleshooting, hotkey functions, and an appendix with detailed POST code tables. Safety and handling precautions for static electricity are also provided. This manual is written in Chinese.
| Processor support | Socket‑AM2 (940‑pin) AMD Athlon‑X2/Athlon‑64/Sempron |
|---|---|
| Memory slots | Four 240‑pin unbuffered non‑ECC DDR2 SDRAM DIMM sockets |
| Maximum memory | 16 GB |
| USB ports | Ten USB 2.0 connectors (four rear) |
| Dual LAN | Two Gigabit Ethernet (Marvell 88E1116) |
| SATA ports | Six SATA‑II ports (300 MB/s) with RAID 0/1/0+1/5 |
| Form factor | ATX 305 mm × 245 mm |
Reinsert the BIOS chip.
Clear CMOS or press the insert key while powering on the system.
Press Alt + F2 during power‑on to enter AWDFLASH and start the BIOS update.
