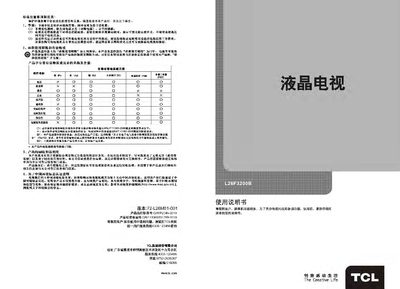

This manual covers safety warnings, environmental considerations and proper disposal for the TCL L26F3200B television. It also details the product’s specifications, connection diagrams and remote‑control functions.
The guide explains basic operation such as power on/off, channel and volume control, input source selection, image and sound settings, USB media playback and how to resolve common faults. This manual is written in Chinese.
| Audio output power | 5W + 5W |
|---|---|
| Working voltage | 220 V / 50 Hz |
| Rated power consumption | 50 W |
| Screen diagonal | ≈66 cm |
| Dimensions (W×H×D) | 644 mm × 415 mm × 52 mm |
| Weight | ≈4.85 kg |
| Operating temperature | 5 °C – 35 °C |
| Storage temperature | -15 °C – 45 °C |
| Supported TV channels | 470 MHz – 858 MHz (D1~57CH, ZI‑Z38CH) |
Enter the Image Settings menu, select “Backlight”, and use the left/right keys to increase or decrease the backlight level.
Images: JPEG, BMP, PNG; Video: MPEG2, MPEG4, etc.; Audio: WMA, MP3, AAC.
