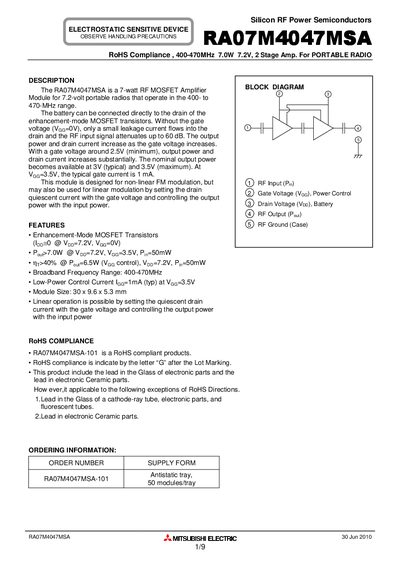

The RA07M4047MSA is a 7 watt RF MOSFET Amplifier Module for 7.2-volt portable radios that operate in the 400- to 470-MHz range.
The RAQ7M4047MSA is a 7‑watt RF MOSFET power amplifier module designed for portable radios operating in the 400‑470 MHz band. It uses enhancement‑mode MOSFET transistors and can be powered directly from a 7.2 V battery. Output power is controlled by gate voltage, with nominal power available at about 3 V (typical) to 3.5 V (maximum).
The module is built on an alumina substrate with a copper flange, protected by a plastic cap. It requires careful handling to avoid mechanical stress, ESD, and improper soldering. Recommended mounting includes a flat heat sink with a thermal resistance of about 2.8 °C/W and a tightening torque of 1.8‑3.0 kgf‑cm for the M2.6 screws. The device is RoHS compliant and includes safety warnings for high‑frequency power generation.
| Frequency Range | 400‑470 MHz |
|---|---|
| Total Efficiency | 40 % |
| Gate Current | 1 mA |
| Drain Voltage Rating | 9.2 V |
| Gate Voltage Rating | 4 V |
| Input Power Rating | 70 mW |
| Input VSWR | 44 |
| Recommended Mounting Torque | 1.8‑3.0 kgf‑cm |
| ESD Sensitivity | down to 1000 V |
Nominal output power becomes available at a gate voltage of about 3 V (typical) up to 3.5 V (maximum).
The recommended tightening torque for the M2.6 mounting screws is 1.8 to 3.0 kgf‑cm.
The module is sensitive to electro‑static discharge voltages down to 1000 V.
