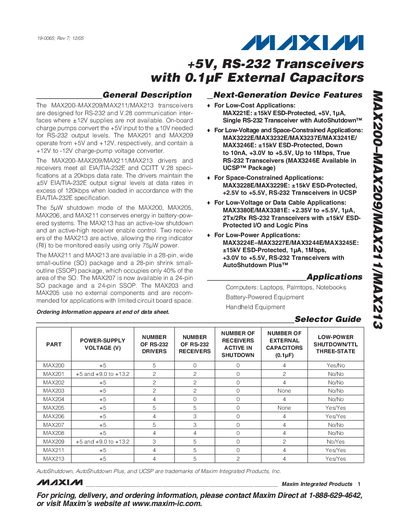

The MAX200–MAX209/MAX211/MAX213 transceivers are designed for RS-232 and V.28 communication interfaces where Q12V supplies are not available. On-board charge pumps convert the +5V input to the Q10V needed for RS-232 output levels. The MAX201 and MAX209 operate from +5V and +12V, respectively, and contain a +12V to -12V charge-pump voltage converter. The MAX200–MAX209/MAX211/MAX213 drivers and receivers meet all EIA/TIA-232E and CCITT V.28 specifications at a 20kbps data rate. The drivers maintain the Q5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification. The 5FW shutdown mode of the MAX200, MAX205, MAX206, and MAX211 conserves energy in battery-powered systems. The MAX213 has an active-low shutdown and an active-high receiver enable control. Two receivers of the MAX213 are active, allowing the ring indicator (RI) to be monitored easily using only 75FW power. The MAX211 and MAX213 are available in a 28-pin, wide small-outline (SO) package and a 28-pin shrink small-outline (SSOP) package, which occupies only 40% of the area.
The MAX200‑MAX213 family are 5 V RS‑232 transceivers with on‑board charge‑pump converters that generate the required ±10 V RS‑232 levels when a +5 V supply is present. The devices meet EIA/TIA‑232E and CCITT V.28 specifications up to 20 kbps and include shutdown modes for low‑power operation.
The document provides absolute maximum ratings, electrical characteristics, typical operating curves, package outlines, and pin‑configuration tables, along with application notes such as capacitor selection and shutdown control.
| Maximum Data Rate | 20 kbps |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
When Vcc = +5 V, the driver output voltage swing is about +8 V into a 5 kΩ load.
The devices support data rates up to 20 kbps.
