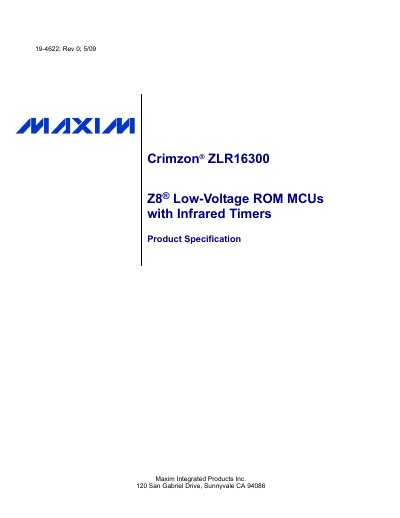

This document describes the features and characteristics of Crimzon® ZLR16300 Z8® low-voltage ROM MCUs with Infrared Timers, manufactured by Maxim Integrated Products Inc.
The Crimzon® ZLR16300 MCU is a ROM‑based member of Maxim's 8‑bit microcontroller family. It provides 1 KB to 16 KB of program memory, 237 bytes of general‑purpose RAM, up to 24 I/O lines, and operates from 2.0 V to 3.6 V. The device includes flexible counter/timer blocks, watchdog timer, low‑voltage detection, and several standby power modes for battery‑operated applications.
The datasheet details pin configurations for 20‑pin and 28‑pin packages, electrical characteristics, absolute maximum ratings, and packaging information. It also lists ordering information, part numbers, and contact details for Maxim's technical support.
| Typical Power Consumption | 5 mW |
|---|---|
| STOP Mode Current | 1.3 µA (typical) |
| HALT Mode Current | 0.5 mA (typical) |
