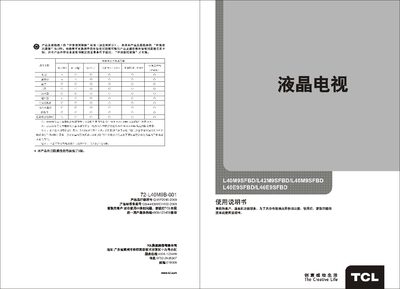

This manual covers safety warnings, product features, front‑panel and remote‑control diagrams, basic operation, picture and sound settings, and advanced function configuration for the TCL L40M9SFBD, L42M9SFBD, L46M9SFBD, L40E9SFBD and L46E9SFBD televisions. It also lists the complete technical specifications and a troubleshooting guide for common issues.
The document is intended for end users and includes step‑by‑step instructions for connecting antennas, power, HDMI, VGA, USB and other inputs, adjusting picture modes, setting timers, and restoring factory defaults. This manual is written in Chinese.
| Screen diagonal size | ≈101 cm – 117 cm (model dependent) |
|---|---|
| Audio output power | 8 W + 8 W (left + right) |
| Working voltage | 220 V / 50 Hz |
| Rated power consumption | 150 W – 220 W (model dependent) |
Select the ‘Restore Factory Settings’ option in the menu to return the TV to its original configuration.
Enter the ‘Picture Settings’ menu, select ‘Backlight’, and use the left/right keys to increase or decrease brightness.
