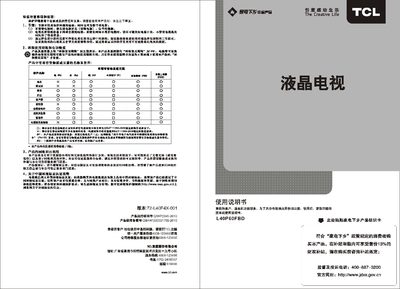

The TCL L40P60FBD television manual begins with safety warnings, environmental considerations, and recycling information, emphasizing proper power usage, handling of hazardous substances, and compliance with Chinese environmental certification. It also outlines the product’s warranty and service contact details.
The remainder of the guide covers the TV’s features such as multi‑format video/audio inputs, picture and sound settings, remote‑control operation, USB media playback, and troubleshooting. Detailed technical specifications, connection diagrams, and step‑by‑step instructions help users set up and use the television safely and efficiently. This manual is written in Chinese.
| Speaker output power | 8 W per channel |
|---|---|
| Operating voltage | 220 V 50 Hz |
| Rated power consumption | 120 W |
| Screen diagonal | ≈102 cm |
| Unit dimensions (W×H×D) | 984 mm × 634 mm × 80 mm |
| Unit weight | ≈11 kg |
| Operating temperature range | 5 °C ~ 35 °C |
| Operating humidity range | 20 % ~ 80 % |
| Storage temperature range | -15 °C ~ 45 °C |
| Storage humidity range | 10 % ~ 90 % |
Open the menu, select Image Settings, then choose Backlight and use the left/right keys to increase or decrease the level.
The television operates on 220 V AC at 50 Hz.
