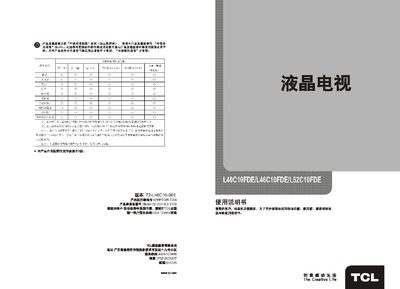

This manual provides safety warnings, product specifications, connection diagrams, remote‑control usage, basic operation steps and menu navigation for TCL L40C10FDE, L46C10FDE and L52C10FDE high‑resolution LCD televisions. It also includes a signal‑format support table and a detailed fault‑analysis guide.
The document is organized into sections such as Introduction, Safety Precautions, Features, Technical Specifications, Exterior Diagram, Remote Control, Basic Operations, Main Menu, Signal Format Support, and Troubleshooting, helping users install, configure and maintain the TV safely and efficiently. This manual is written in Chinese.
| Screen diagonal | 101 cm (L40C10FDE), 117 cm (L46C10FDE), 132 cm (L52C10FDE) |
|---|---|
| Working voltage | 220 V, 50 Hz |
| Power consumption | 190 W (L40C10FDE), 280 W (L46C10FDE), 330 W (L52C10FDE) |
| Dimensions (W×H×D) | 947 × 612 × 45 mm (L40C10FDE), 1010 × 685 × 45 mm (L46C10FDE), 1214 × 774 × 45 mm (L52C10FDE) |
Use a dry soft cloth or a cleaning solution made for LCD panels; do not apply pressure or use water or chemical cleaners.
Open the battery compartment, insert two AA (7‑size) batteries with the correct polarity, and close the cover. Do not mix new and old batteries or use different types.
