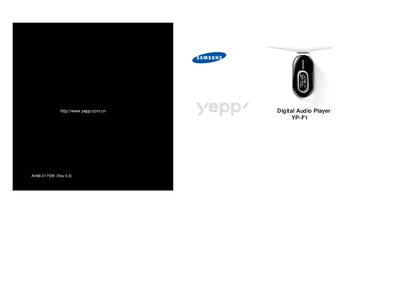

YP-F1 is a digital audio player produced by Samsung. It supports MP3, WMA, Audio ASF, Ogg and other formats. It has an FM radio and supports lyric display. It is available in 128MB, 256MB, 512MB and 1GB capacities.
This manual covers safety precautions, device features, and how to connect the YP-F1 to a computer, including driver installation. It also explains basic usage such as selecting music, FM radio, recording, and using navigation functions.
Additional sections describe battery charging, firmware upgrades, operating environment, and detailed product specifications like memory capacity, playback time, dimensions, and supported audio formats. This manual is written in Chinese.
| Playback Time | Up to 10 hours |
|---|---|
| Dimensions / Weight | 29 × 69.5 × 15 mm / 329 g |
| Battery Voltage | 3.7 V |
| Noise Ratio | 80 dB |
| Headphone Output | 14 mW |
| Frequency Range | 20 Hz – 20 kHz |
| Operating Temperature | -5 °C to +35 °C (23 °F to 95 °F) |
| FM Frequency Range | 87.5 MHz – 108.0 MHz |
| FM Signal‑to‑Noise Ratio | 58 dB |
| FM Distortion | 19 % |
| FM Sensitivity | 10 dB |
| Supported Audio Formats | MP3, WMA, ASF, Ogg (Vorbis) |
The built‑in lithium‑ion battery provides up to 10 hours of continuous playback.
The player supports MP3, WMA, ASF and Ogg (Ogg Vorbis) files.
The device operates between –5 °C and +35 °C (23 °F to 95 °F).
