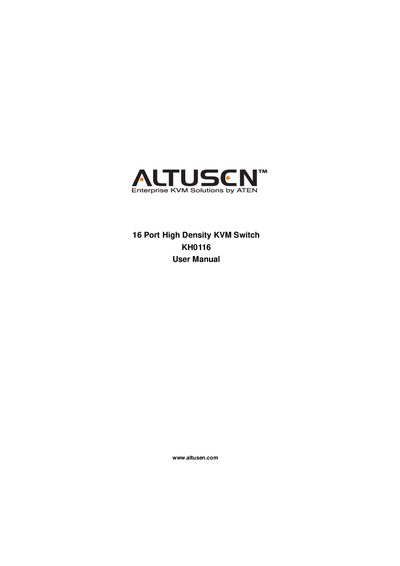

This is the user manual of Altusen KH0116 16 Port High Density KVM Switch
This manual covers all aspects of the ATEN KH0116 16‑Port High Density KVM Switch, including safety precautions, rack mounting, cable connections, and detailed operating procedures such as OSD navigation, hotkey functions, and firmware upgrades. It also lists the package contents and provides a comprehensive troubleshooting guide.
Technical specifications are provided, detailing connector types, power consumption, operating temperature range, video resolution, and physical dimensions of the unit.
| Console connector | VGA 1 x HDB-15 |
|---|---|
| Computer ports | 16 x SPDB-15 F |
| Power consumption | DC 9V; 8W (max.) |
| Operating temperature | 0 – 50 °C |
| Video resolution | 2304 × 1440; DDC2B |
| Dimensions (L×W×H) | 483 × 210 × 45 mm (19" 1U) |
The KH0116 is a 16‑port high‑density KVM switch.
It consumes up to 8 W at 9 V DC.
Use the Firmware Upgrade Utility described in Chapter 5 of the manual.
