The HP Compaq dx2188 is a desktop PC that comes equipped with an Intel Pentium D processor, supports ATI and NVIDIA PCIe x16 graphics cards, and runs Microsoft Windows XP Professional/Home operating system.

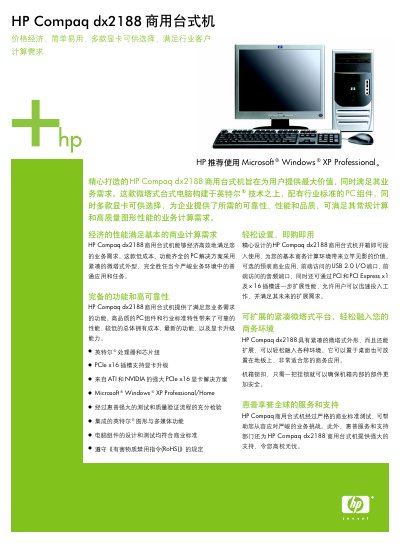

This manual covers the HP dx2188 commercial desktop PC, providing information on setup, hardware components, and usage.
It details the available processors, memory, storage options, graphics adapters, expansion slots, I/O ports, dimensions, and power specifications. This manual is written in Chinese.
| Processor speed | 2.53 – 3.2 GHz |
|---|---|
| Memory type | DDR2 SDRAM PC2-4200 533 MHz |
| Storage interface | ATA 1.5 Gb/s |
| Graphics | Graphics Media Accelerator (GMA)900 |
| Network | 10/100 Broadcom NetXtreme |
| Dimensions | 36.8 × 17.5 × 40.0 cm |
| Power supply | 230 W ATX‑PFC |
The HP dx2188 supports Microsoft Windows XP Professional, Windows XP Home, and FreeDOS.
Graphics options include the integrated Graphics Media Accelerator (GMA)900, ATI Radeon x300SE with 128 MB, NVIDIA GeForce 6200 TC with 64 MB, and NVIDIA GeForce 6600 with 128 MB.
The system measures 36.8 × 17.5 × 40.0 cm and uses a 230 W ATX‑PFC power supply.
