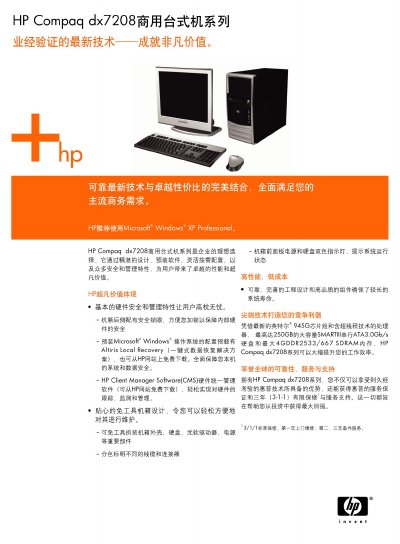

This manual describes the HP Compaq dx7208 commercial desktop, highlighting its Intel 945G chipset, Pentium 4 and Celeron processors, up to 4 GB DDR2 memory, and a range of storage options. It also outlines security features such as a lockable chassis, tool‑less access for maintenance, and pre‑installed Altiris Local Recovery for data protection.
Detailed hardware specifications are listed, including processor models, memory configurations, hard‑drive capacities, optical drive speeds, expansion slots, graphics options, ports, physical dimensions, power supply rating, supported operating systems, and the 3‑year (3/1/1) warranty coverage. This manual is written in Chinese.
| Processor | Intel Pentium 4 2.8 GHz (1 MB L2 cache, 800 MHz FSB) |
|---|---|
| Memory | DDR2 PC2‑4200/PC2‑5300 up to 4 GB |
| Hard Drive | 80 GB, 160 GB or 250 GB SATA 3.0 Gb/s |
| Optical Drive | 48×/32× CD‑R/W drive |
| Expansion Slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI full‑height |
| Graphics | Integrated Intel GMA 950 |
| Power Supply | 300 W |
| Dimensions | 36.6 × 17.5 × 42.0 cm (H × W × D) |
| Operating System | Windows XP Professional SP2, XP Home SP2, FreeDOS |
| Warranty | 3‑year (3/1/1) – 1 yr on‑site, 2 yr parts |
HP recommends using Microsoft Windows XP Professional.
It comes with a 3‑year (3/1/1) warranty: first year on‑site service, second and third years parts service.
The system includes Altiris Local Recovery, a one‑click data recovery solution that can be downloaded from HP’s website.
