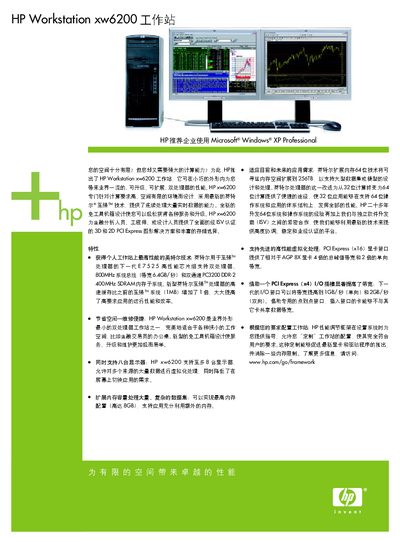

This document describes the features and characteristics of HP Workstation xw6200, including support for Windows XP Professional and Red Hat Enterprise Linux operating systems, as well as high-performance processors and large-capacity memory.
This manual describes the HP xw6200 workstation, a compact dual‑processor system aimed at engineers, designers, and financial analysts who need high performance in a small footprint. It outlines supported operating systems, hardware configuration options, and maintenance procedures.
Key features include Intel Xeon processors (up to 3.6 GHz), up to 8 GB of ECC DDR‑2 memory, multiple PCI Express slots, support for up to eight displays, and a 500 W power supply. The document also lists expansion bays, storage options, and security features such as chassis locks and optional remote lock mechanisms. This manual is written in Chinese.
| Processor Options | 1‑2 Intel Xeon processors, 2.8‑3.6 GHz, 1 MB L2 cache |
|---|---|
| Front‑Side Bus | 800 MHz |
| Chipset | Intel E7525 |
| Power Supply | 500 W |
| Dimensions (W×D×H) | 17.35" × 6.5" × 17.32" (44.1 cm × 16.5 cm × 45.0 cm) |
| Weight | 15 kg (33 lb) |
| USB Ports (Rear) | 6 USB ports |
It supports Microsoft Windows XP Professional, Windows 2000 Professional, and Red Hat Enterprise Linux.
The workstation can be configured with one or two Intel Xeon processors.
The system includes a 500 W power supply.
