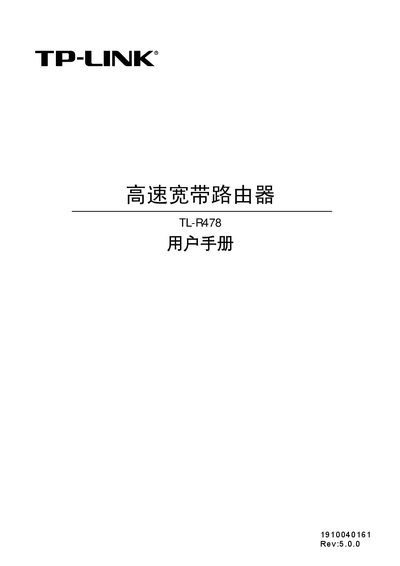

This manual introduces the basic functions and usage methods of TL-R478 high-speed broadband router, including hardware installation, quick installation, configuration guide and so on. It details how to use the router to achieve Internet access, shared printer, file sharing, remote management and other functions.
This manual introduces the TL‑R478 router, covering its main features such as attack protection, application limits, QoS, and MAC binding, which are especially useful for small‑to‑medium businesses and internet cafés. It includes hardware installation steps, a quick‑start guide for basic network settings, and detailed configuration instructions for advanced functions.
Appendices contain a FAQ, detailed TCP/UDP settings, and a technical specifications table that lists ports, dimensions, power requirements and environmental limits. This manual is written in Chinese.
| LAN ports | 4 x 10/100Mbps RJ45 (Auto MDI/MDIX) |
|---|---|
| WAN ports | 1 x 10/100Mbps RJ45 (Auto MDI/MDIX) |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Operating humidity | 10 % ~ 90 % RH (non‑condensing) |
| Power input | 100‑240 V, 50/60 Hz, 0.3 A |
The router provides four 10/100 Mbps LAN ports with auto‑MDI/MDIX.
It operates from 0 °C to 40 °C.
Yes, the power input supports 100‑240 V AC.
Yes, it supports QoS settings based on IP or port to limit bandwidth per device.
