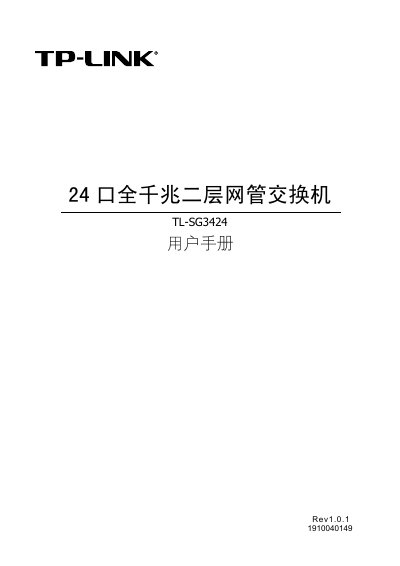

This document is a user manual for the 24-port Gigabit Layer 2 Managed Switch TL-SG3424, providing an overview of the product's features and characteristics.
This manual covers the hardware overview, web interface navigation, and basic operation of the TL‑SG3424 24‑port gigabit Ethernet switch. It includes safety notices, installation steps, and power requirements.
Detailed chapters guide users through system management, port configuration, VLAN and MAC‑VLAN setup, link aggregation (LACP), spanning‑tree protocols, QoS, security features such as 802.1X, SNMP/RMON monitoring, and cluster management. Specification tables at the end list supported standards, performance parameters, and environmental limits. This manual is written in Chinese.
| Number of ports | 24 10/100/1000 Mbps |
|---|---|
| Supported IEEE standards | 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.1q, 802.1X |
| Power input | 100‑240 V~ 50/60 Hz 0.6 A |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidity range | 5 % ~ 90 % RH |
| Backplane bandwidth | 12.8 Gbps |
| MAC address table size | 8 K entries |
It supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.1q and 802.1X.
The switch operates from 100‑240 V AC at 50/60 Hz and draws up to 0.6 A.
It provides 24 ports that support 10/100/1000 Mbps Ethernet.
The backplane bandwidth is rated at 12.8 Gbps.
