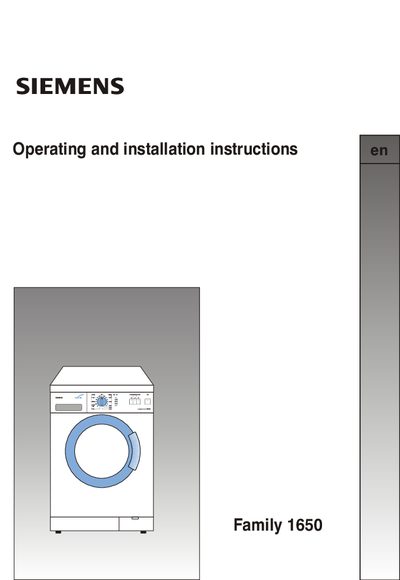

This document is the Siemens S en Family 1650 washing machine operation manual. It introduces the characteristics of the washing machine and the methods of using and maintaining the washing machine.
The Siemens Family 1650 washing machine manual provides detailed safety precautions, installation steps, and usage guidelines. It explains how to connect water and power, install transport bolts, and select appropriate washing programmes for different fabrics.
Additional sections cover disposal and environmental information, technical specifications, control panel functions, and appendices for adjusting buzzer volume and audible feedback. Troubleshooting tips and customer service contact details are also included.
| Rated voltage | 220V~ |
|---|---|
| Rated frequency | 50Hz |
| Washing power | 200W |
| Spinning power | 460W |
| Washing capacity | 5.2kg |
| Heating power | 1800W |
| Spinning capacity | 5.2kg |
| Maximum power | 2000W |
| Water pressure | 0.1~1MPa |
| Maximum current | 10A |
| IP rating | IPX4 |
The washing capacity is 5.2 kg.
Turn the machine on, set the programme selector to Off, select the desired programme, press the Intensive button, and rotate the selector until you hear the desired buzzer level.
To enable, turn the selector to Off, press Intensive and Extra Rinsing, then select a programme; you will hear a long tone. To disable, repeat the steps and you will hear a short tone.
