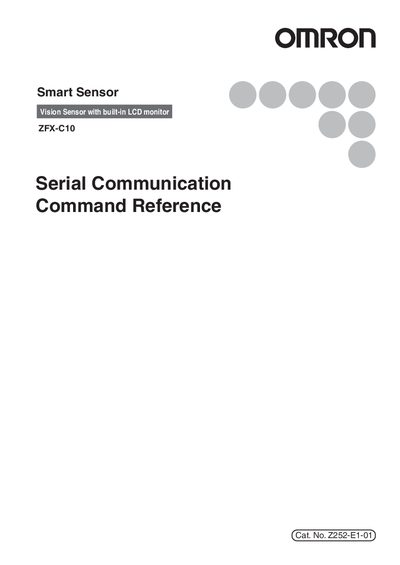

This document is a serial communication command reference manual for the ZFX-C smart sensor vision sensor. The manual provides information on the functions, performance, and operating methods required for using the ZFX-C.
This manual describes the serial communication capabilities of the Omron ZFX-C10 intelligence sensor. It covers the supported interfaces—USB, RS‑232C/422, and Ethernet—along with their configuration options, data formats, and protocol details.
The document also explains how to connect the sensor to PCs, PLCs, or multiple controllers, and provides the command/response structure, available command sets, and procedures for version upgrades and backups.
