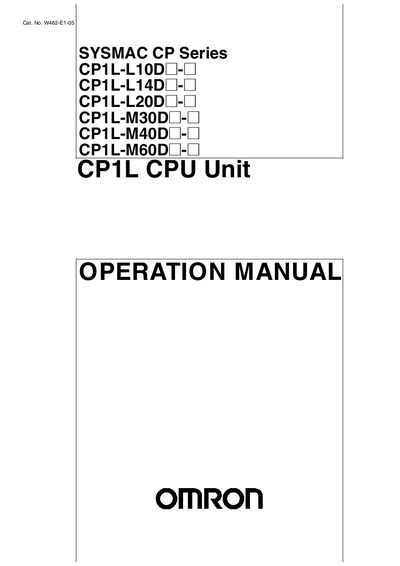

omron SYSMAC CP Series CP1L-L10D@-@ CP1L-L14D@-@ CP1L-L20D@-@ CP1L-M30D@-@ CP1L-M40D@-@ CP1L-M60D@-@ CP1L CPU Unit OPERATION MANUAL

This manual describes the function and operation of the CP1L CPU unit. It is applicable to the CP1L-L10D@-@, CP1L-L14D@-@, CP1L-L20D@-@, CP1L-M30D@-@, CP1L-M40D@-@, CP1L-M60D@-@ models.

Brand: Omron
Category: Automation control Equipment
Document type: User Manual
Language: English
Pages: 762
File format: PDF
File size: 13.4 MB
Published: 19 March, 2012
Updated: 30 September, 2023
MD5 checksum: 88A50C04F6B1D673C4D4E76781A162F1
PDF: omron SYSMAC CP Series CP1L-L10D@-@ CP1L-L14D@-@ CP1L-L20D@-@ CP1L-M30D@-@ CP1L-M40D@-@ CP1L-M60D@-@ CP1L CPU Unit OPERATION MANUAL PDF

About this manual

This operation manual covers the SYSMAC CP Series CPU Units, including the CP1L‑L10D, CP1L‑L14D, CP1L‑L20D, CP1L‑M30D, CP1L‑M40D, CP1L‑M60D and CP1H models. It explains safety symbols (DANGER, WARNING, Caution), unit‑version labeling, and the procedures for confirming unit versions using CX‑Programmer.

The document details how to set device type and CPU type in CX‑Programmer, view PLC information, and manage unit‑version differences. Revision history and manufacturing details are also provided.

What's inside

Notice
Unit Versions
Confirming Unit Version
PLC Information
Device Type Settings
Revision History

Specifications

Data memory	32768 Words
Revision	A

Frequently asked questions

How can I confirm the unit version of a CP1L CPU Unit?

Use CX‑Programmer version 7.3 or higher and open the PLC Information dialog to view the unit version.

What CX‑Programmer version is required for CP1L CPU Units with 10 I/O points?

CX‑Programmer version 7.3 or higher is required.

What safety symbols are defined in the manual?

The manual defines DANGER, WARNING, and Caution symbols to indicate hazardous situations.
