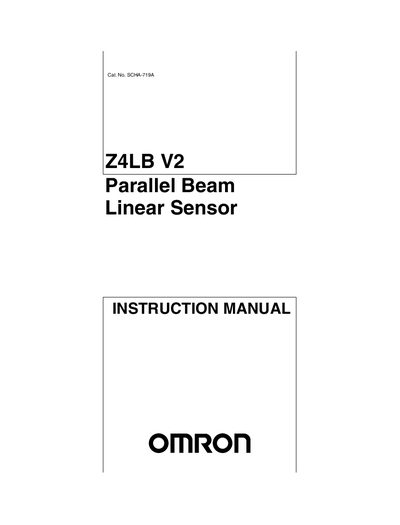

This manual describes how to use the OMRON SCHA-719A Z4LB V2 Parallel Beam Linear Sensor.
The guide explains the proper handling, installation, and adjustment of the Z4LB V2 parallel‑beam linear sensor. It includes safety notices, warranty information, and limits of liability to ensure the product is used correctly and safely.
The manual is organized into sections covering application examples, preparation steps, wiring, axis and gain adjustments, sensor installation, basic and optional settings, timing charts, and dimensional data. Detailed procedures and diagrams help users configure measurement units, thresholds, and hold functions for optimal performance.
| Cable conductor count | 10 |
|---|---|
| Insulation diameter | 1.1 mm |
| Mounting holes | Two M4 holes |
OMRON’s exclusive warranty covers defects in materials and workmanship for one year from the date of sale.
The sensor must not be used in applications involving serious risk to life or property unless the system is designed for those risks and the product is properly rated and installed.
