E5CSZ temperature controller is an easy-to-set temperature controller that can be set with DIP switches and simple functions. It has easy-to-use DIP and rotary switches, supports multiple input (thermocouple/platinum resistance) types, is equipped with a clear and obvious digital display with a character height of 13.5 mm, and the product is available in black and white cases. It meets RoHS (preliminary approved in January 2006).

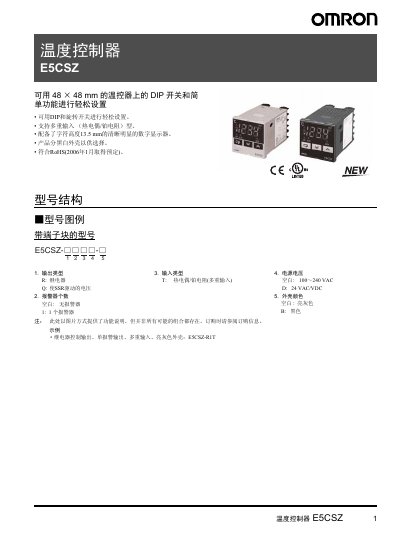

This manual covers the E5CSZ temperature controller’s features, including multiple‑input (thermocouple/RTD) sensing, relay and voltage outputs, and a 3.5‑digit 7‑segment display with 13.5 mm characters. It details ordering options, wiring diagrams, and configuration of control, alarm, and safety settings.
Installation, setup, and maintenance procedures are described, along with environmental limits, protection ratings, and warranty information. The document also includes safety precautions for handling the unit and guidelines for extending thermocouple leads. This manual is written in Chinese.
| Input type | Multiple input (thermocouple / RTD) |
|---|---|
| Relay output | SPST‑NO, 250 VAC, 3 A (resistive load) |
| Voltage output for SSR drive | 12 VDC, 21 mA |
| Display | 3.5‑digit, 7‑segment, 13.5 mm character height |
| Environmental temperature range | -10 °C to 55 °C |
| Environmental humidity range | 25 % to 85 % |
| Protection rating | Front panel IP50, rear cover IP20 |
| Weight | ≈120 g |
Some models have no alarm output, while other models provide one alarm output.
It uses a 3.5‑digit, 7‑segment display with a character height of 13.5 mm.
The controller operates in temperatures from –10 °C to 55 °C and humidity from 25 % to 85 %.
