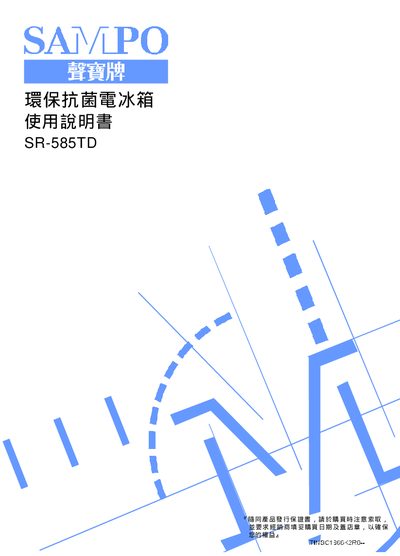

This document is an instruction manual for the SR-585TD eco-friendly antibacterial refrigerator, which describes the functions and features of the product.
The SR-585TD refrigerator features a rapid freeze compartment, a fresh‑keep compartment for short‑term storage of fish and meat, and an antibacterial system that uses platinum‑based deodorizing material to keep the interior odor‑free. Temperature is controlled automatically via a dial, with separate settings for the freezer and fresh‑keep sections, and the unit includes safety warnings for handling water expansion and electrical hazards.
Installation guidelines cover proper placement on a flat, well‑ventilated surface with at least 10 cm clearance behind and above the unit, as well as regular cleaning of the drain pipe (about once a month) and the interior. The manual also outlines troubleshooting steps for abnormal sounds, burning smells, and water leakage, and provides contact information for authorized service centers. This manual is written in Chinese.
| Rated Voltage | 110 V |
|---|---|
| Rated Frequency | 60 Hz |
| Motor Rated Power | 165 W |
| Heater Rated Power | 140 W |
| Total Volume | 580 L |
| Compartment Volumes | Freezer 153 L / Fresh‑keep 302 L / Vegetable 125 L |
| Monthly Energy Consumption | 72 kWh |
| Energy Efficiency | 9.71 L/kWh |
| Refrigerant | R‑134a |
| Refrigerant Charge | 145 g |
| Product Weight | 95 kg |
The drain pipe should be cleaned regularly, about once a month, to prevent buildup and odors.
Stop the unit immediately and disconnect the power supply.
