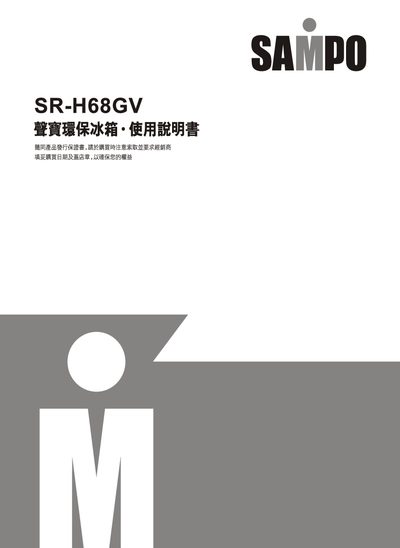

This manual covers safety precautions, proper installation, and usage instructions for the Sampo SR‑H68GV environmentally friendly refrigerator. It explains how to set up the unit on a flat surface, connect grounding, and avoid common hazards such as water damage and electrical leakage.
The guide also details the deodorization and antibacterial technologies, component functions, accessory assembly, and troubleshooting procedures. Technical specifications, including power ratings, capacities, and dimensions, are listed at the end of the document. This manual is written in Chinese.
| Rated Voltage (V) | 110 |
|---|---|
| Rated Frequency (Hz) | 60 |
| Motor Rated Power (W) | 150 |
| Heater Rated Power (W) | 140 |
| Net Capacity (L) | 580 |
| Freezer/Fridge/Vegetable Net Capacity (L) | 155/303/122 |
| Monthly Energy Consumption (kWh) | 71.9 |
| Energy Efficiency Index (kWh/month) | 9.75 |
| Refrigerant Type | R-134a |
| Product Weight (kg) | 98 |
| Dimensions (mm) | 754 x 1825 x 748 |
Place the unit on a flat, level surface; if the floor is uneven, adjust the leveling feet as described.
Periodically disconnect and clean the drain pipe according to the instructions provided for the drain pipe assembly.
Unplug the power cord to ensure safety, especially during extended periods such as travel.
