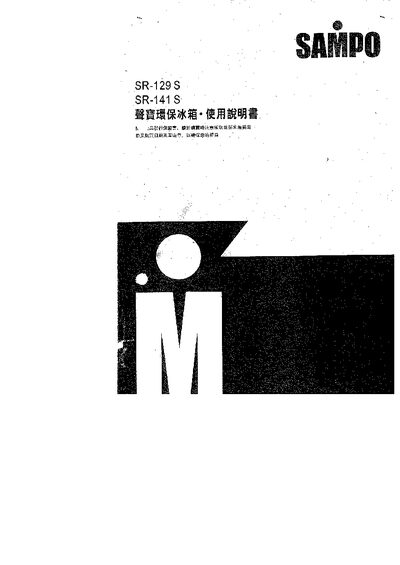

The manual begins with safety precautions such as grounding the appliance, avoiding water exposure, and proper handling of glass containers. It then explains how to operate the refrigerator, adjust temperature controls, use the ice‑making tray, and maintain the interior components.
A detailed specifications table lists electrical requirements, dimensions, weight, capacity, and included accessories. The document also covers troubleshooting, disposal, and regular cleaning procedures to keep the unit running efficiently. This manual is written in Chinese.
| Power Supply Voltage | 110V |
|---|---|
| Power Frequency | 60Hz |
| Motor Power Consumption | 90W |
| Heater Power Consumption | 110W |
| Monthly Energy Consumption | 45kWh/month |
| Dimensions (W×D×H) | 471mm x 549mm x 1282mm |
| Weight | 38Kg |
| Total Capacity | 140L (Freezer 40L, Refrigerator 100L) |
| Internal Light Specification | 110V/10W |
The internal light uses a 110V/10W lamp; replacement should be performed by a qualified technician or following the service instructions.
After unplugging, wait about 7 minutes before reconnecting to avoid excessive compressor load.
The evaporator tray should be cleaned once a month to prevent odor and buildup.
