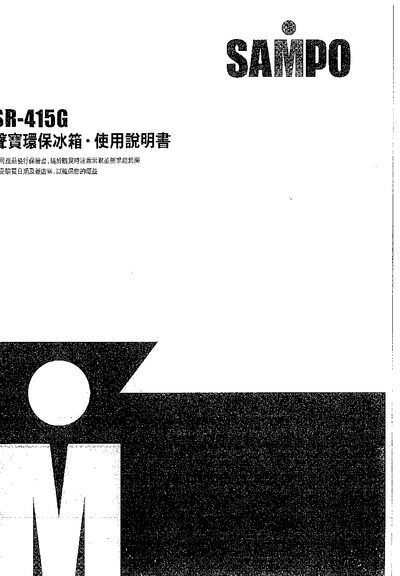

This manual covers safety precautions, proper installation, grounding, and ventilation requirements for the SR-415G refrigerator. It explains the deodorization and antibacterial technologies, lists all components, and describes how to assemble and disassemble accessories.
Operating instructions include start‑up procedures, temperature adjustment, ice‑maker use, and food storage guidelines. Maintenance, cleaning, and detailed troubleshooting steps are provided, along with a full specification table for the model. This manual is written in Chinese.
| Rated Voltage | 110 V |
|---|---|
| Rated Frequency | 60 Hz |
| Motor Power | 145 W |
| Heater Power | 130 W |
| Net Capacity | 410 L |
| Freshroom / Freezer Capacity | 120 L / 290 L |
| Monthly Power Consumption | 62 kWh/month |
| Energy Factor | 8.1 L/kWh/month |
| Refrigerant | R-134a |
| Weight | 66 Kg |
| Dimensions (W×H×D) | 674×1678×661 mm |
Connect the grounding wire to the dedicated grounding screw on the back left side of the fridge.
Verify the power supply, fuse, plug, voltage (must be above 99 V), and ensure the temperature knob is not set to the weak position.
No. Glass bottles should not be placed in the freezer because water expands when frozen and can cause the bottle to break.
