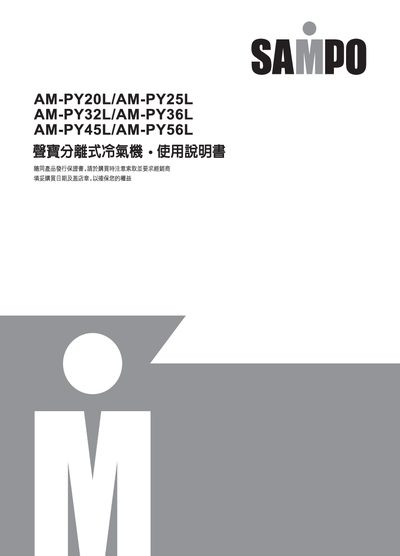

This manual covers the safe handling, installation, and everyday use of Sampo AM‑PY series split‑type air‑conditioners. It provides detailed instructions for wiring, pipe connections, and setting up the indoor and outdoor units.
Key sections include safety specifications, component identification, timer and sleep mode settings, airflow direction adjustment, routine maintenance, and a troubleshooting guide to resolve common issues. This manual is written in Japanese.
| Rated Voltage | 220V |
|---|---|
| Rated Current | 10A |
| Indoor Unit Dimensions | 810 × 295 × 210 mm |
| Outdoor Unit Dimensions | 800 × 555 × 300 mm |
| IP Rating (Indoor/Outdoor) | IPX0 / IPX4 |
Press the timer button; the lamp will light to indicate that the timer is active.
The indoor side is rated IPX0 and the outdoor side is rated IPX4.
Install the indoor unit at a height of at least 2.5 m to avoid accidental contact.
Use the Y‑type power cord supplied with the unit; do not replace it yourself.
