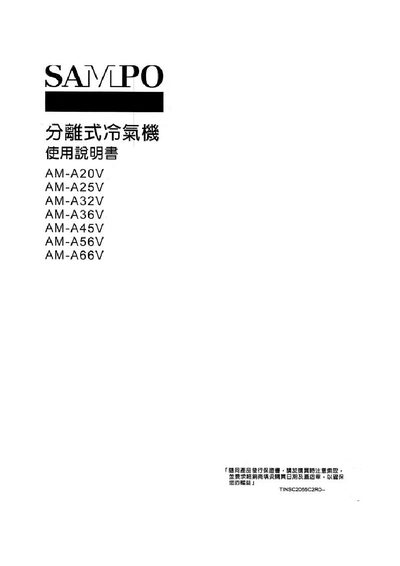

This manual covers safety precautions, proper grounding, and wiring requirements for the Sampo split‑type air‑conditioner series. It explains how to install indoor and outdoor units, connect power and refrigerant lines, and secure the units according to the listed dimensions.
Operating instructions describe how to control airflow, set timers, and perform routine cleaning after every 100 hours of use. Technical data such as dimensions, rated voltage, and power consumption are listed in the specification table at the end of the document. This manual is written in Japanese.
| Model | AM-A20V |
|---|---|
| Rated Power Consumption | 2000 W |
| Dimensions (L×W×H) | 1790 mm × 270 mm × 170 mm |
| Maximum Power Cable Length | 7 m |
| Outdoor Unit IP Rating | IPX4 |
The power cable length must not exceed 7 meters.
