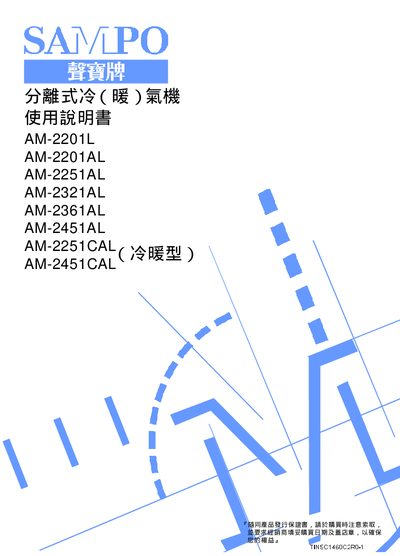

This instruction manual is about AM-2201L, AM-2201AL, AM-2251AL, AM-2321AL, AM-2361AL, AM-2451AL, AM-2251CAL, AM-2451CAL model air conditioners, mainly introducing the use methods and precautions of air conditioners.
The manual begins with safety and installation guidelines, covering power‑line requirements, grounding specifications, and pipe‑length limits. It stresses using the correct power cable, connecting ground wires first, and avoiding extension cords.
Subsequent sections describe the remote‑control functions, temperature and fan‑speed settings, cleaning indicators, and heating mode (available on CAL models). Detailed instructions are given for cleaning filters, resetting timers, and troubleshooting common issues. This manual is written in Japanese.
| Indoor IP Rating | IPX0 |
|---|---|
| Outdoor IP Rating | IPX4 |
| Maximum Pipe Length | 7 m |
| Hot‑side Temperature Range | 21 °C – 43 °C |
| Cold‑side Temperature Range | 21 °C – 32 °C |
| Air Flow Capacity (Exhaust) | 27 kg/m³ |
| Air Flow Capacity (Intake) | 6 kg/m³ |
The pipe length must not exceed 7 meters.
The indoor unit is rated IPX0 and the outdoor unit IPX4.
The heating side operates between 21 °C and 43 °C.
It exhausts 27 kg/m³ and intakes 6 kg/m³ of air.
