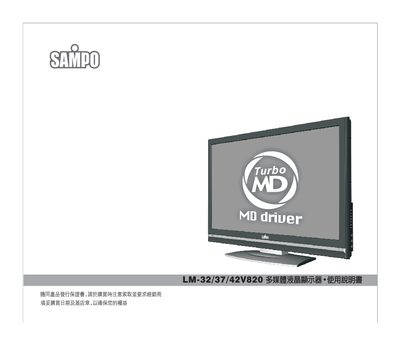

This manual covers safety precautions, proper handling, and installation steps for the Sampo LM-32/37/42V820 series LCD monitors. It explains how to connect power, video, and audio inputs, and provides warnings about cleaning and environmental conditions.
The document also lists the technical specifications of the monitor series, including screen size, resolution, supported video formats, power requirements, dimensions, and weight. Users can refer to the troubleshooting section for common issues and contact information for service support. This manual is written in Chinese.
| Model names | LM-82V820, LM-87V820, LM-42Y820 |
|---|---|
| Resolution | 1920 x 1080 |
| Horizontal frequency | 31‑75 kHz |
| Vertical frequency | 50‑70 Hz |
| Power supply | AC 100‑240 V, 50‑60 Hz |
| Rated current | 1.1 A (110 V) – 1.6 A (110 V) |
| Dimensions (without stand) | 790 mm W × 115.2 mm D × 530 mm H |
| Weight (without stand) | 13.1 kg – 23.1 kg |
| HDMI inputs | 2 |
The monitor can be powered from AC 100‑240 V at 50‑60 Hz.
The monitor provides two HDMI inputs.
Do not use spray cleaners; clean the screen with a dry cloth only.
