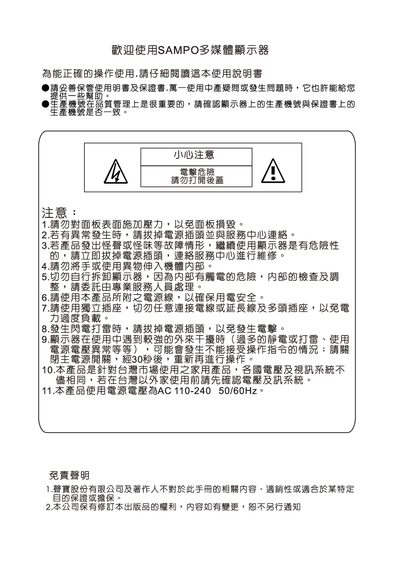

This manual covers safety precautions, proper installation, and handling of the Sampo multimedia LCD monitor. It explains how to connect the monitor to a PC using RGB, D‑SUB, HDMI or DVI interfaces, and describes the functions of the front‑panel controls such as POWER, VOL, SEL and MENU.
The guide also details basic operation procedures, input‑mode selection, image and audio adjustments, sleep‑timer settings, troubleshooting tips, and provides the monitor’s technical specifications and optional wall‑mount dimensions. This manual is written in Chinese.
| Wall‑mount screw holes (type 1) | 8 |
|---|---|
| Wall‑mount screw holes (type 2) | 12 |
| Inclination angle options | 0°, 5°, 10°, 15° |
| Mount thickness | 74 mm |
