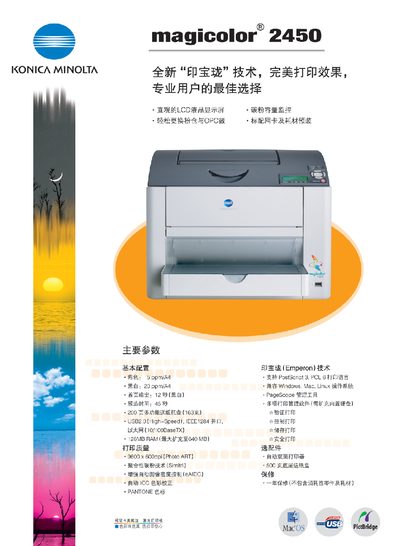

This manual describes the main specifications of the magicolor 2450, including print speeds of 5 ppm color and 20 ppm black‑white, a resolution of 9600 × 600 dpi, and supported paper sizes. It also lists hardware details such as a 300 MHz Freescale MPC8220i processor, 128 MB RAM expandable to 640 MB, and connectivity options (USB 2.0, IEEE1284 parallel, 10/100 Base‑TX Ethernet).
Installation, paper handling, and consumable information are covered, along with power requirements, operating environment limits, noise levels, safety certifications, and warranty terms. The document includes software support for Windows, Mac, and Linux, as well as PageScope management tools. This manual is written in Chinese.
| Color print speed | 5 ppm (A4) |
|---|---|
| Black‑white print speed | 20 ppm (A4) |
| Processor | Freescale MPC8220i, 300 MHz |
| Memory | 128 MB RAM (expandable to 640 MB) |
| Monthly duty cycle | 35,000 pages |
| Maximum power consumption | 1100 W |
| Standby power consumption | <250 W |
| Weight (without consumables) | 18 kg |
The printer comes with a one‑year warranty that does not cover consumable parts.
The printer supports Windows (including Server 2003, XP, 2000, NT4.0, ME, 98SE), Mac OS 9 & OS X (10.2 or later), and Linux (RedHat 9.0, Suse 8.2).
The printer is rated for a monthly print load of up to 35,000 pages.
