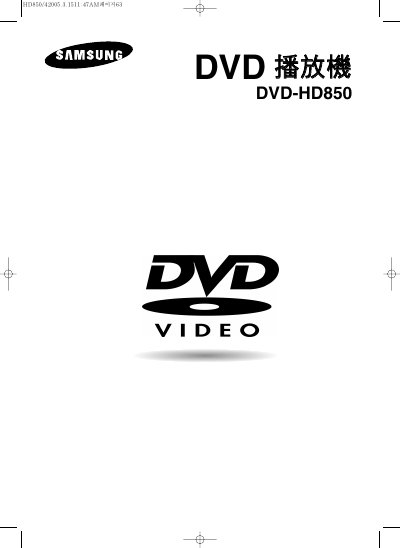

This manual mainly introduces the basic operation methods of DVD-HD850 DVD player, including wiring, installation, and use.
This manual guides you through installing the DVD‑HD850, including safety precautions, proper ventilation, battery installation for the remote, and connecting the unit to your TV. It also explains how to handle discs, use the remote, and perform basic troubleshooting.
The document details the player’s features such as Dolby digital sound, EZ View screen adjustment, HDMI output, and supported disc formats. Technical specifications for power, dimensions, temperature range, and audio/video outputs are listed at the end for reference.
| Power Requirements | AC 110-240 V, 60750 Hz |
|---|---|
| Power Consumption | 12 W |
| General Weight | 2.3 Kg |
| Dimensions (W x D x H) | 430mm x 250mm x 49mm |
| Operating Temperature Range | +5°C to +39°C |
| Operating Humidity Range | 10% to 75% |
| DVD Reading Speed | 3.49 – 4.06 Mbit/s |
| Approx. Play Time (Single‑sided DVD) | 195 min |
| CD Reading Speed | 4.8 – 5.6 Mbit/s |
| Composite Video Output | 1.0 Vp‑p (75 Ω load) |
| HDMI Output Resolutions | 480p/576p, 720p, 768p, 1080i |
| Audio Frequency Response | 96 kHz |
Press the EZ VIEW button on the front panel to change the aspect ratio, matching the picture to a 16:9 or 4:3 TV screen.
