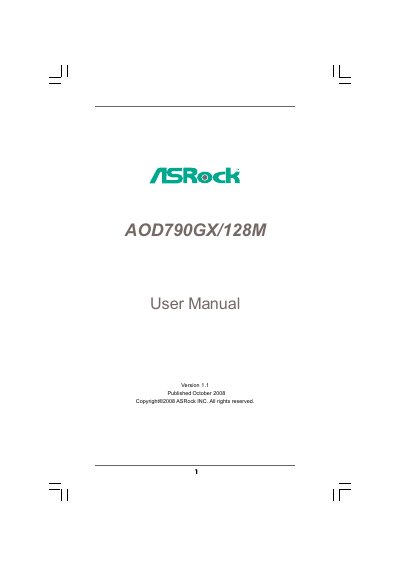

ASRock AOD790GX/128M User Manual
This user manual introduces the ASRock AOD790GX/128M ATX motherboard, describing its features, package contents, and the step‑by‑step procedures for hardware installation, BIOS configuration, and operating‑system setup. It also includes safety warnings, over‑clocking guidance, and references to the support CD.
The document details the motherboard’s specifications, including CPU socket, chipset, memory, expansion slots, integrated graphics, audio, networking, and I/O connectors. It explains how to use the BIOS Setup Utility, configure RAID, enable CrossFireX, and access software utilities provided on the support CD.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Chipset | AMD 790GX northbridge, AMD SB750 southbridge |
| LAN | Realtek RTL8111C-VCO‑GR Gigabit Ethernet |
| SATA Connectors | 6 × SATAII 3.0 Gb/s ports with RAID support |
| USB Ports | 6 × USB 2.0 ports on rear panel |
Yes, it supports Full HD 1080p Blu‑ray/HD‑DVD playback when the required hardware configuration is met.
