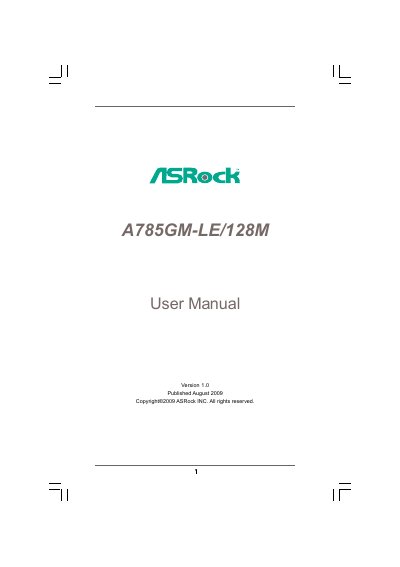

ASRock A785GM-LE/128M Motherboard User Manual

ASRock INC. A785GM-LE/128M User Manual, Introduces the features and usage of the motherboard

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 551 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: A128M, A785GM-LE, 128M
MD5 checksum: D19EE34DA9B1C99C878DD05A1D527A4B
PDF: ASRock A785GM-LE/128M Motherboard User Manual PDF

About this manual

This manual introduces the ASRock A785GM-LE/128M motherboard, its package contents, and key specifications. It guides users through hardware installation, BIOS setup, and software support.

Detailed sections cover CPU and memory installation, expansion slot usage, SATA and RAID configuration, overclocking features, and troubleshooting. The document also includes a support CD guide and contact information for further assistance.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
I/O Panel
Installation Procedures
BIOS Setup Utility
Software Support
Overclocking Warning

Specifications

Form Factor	Micro ATX (9.6" x 7.8")
Chipset	Northbridge AMD 785G, Southbridge AMD SB710
LAN	Realtek RTL8111DL Gigabit Ethernet, Wake‑On‑LAN
BIOS	8 Mb AMI BIOS

Frequently asked questions

What is the form factor of the ASRock A785GM-LE/128M motherboard?

It is a Micro ATX board measuring 9.6 × 7.8 inches.

How many SATA ports does the motherboard provide?

The board includes six SATAII 3.0 Gb/s connectors with RAID support.

What is the maximum memory capacity?

The motherboard can handle up to 8 GB of DDR2 memory.

Download PDF (551 KB)
