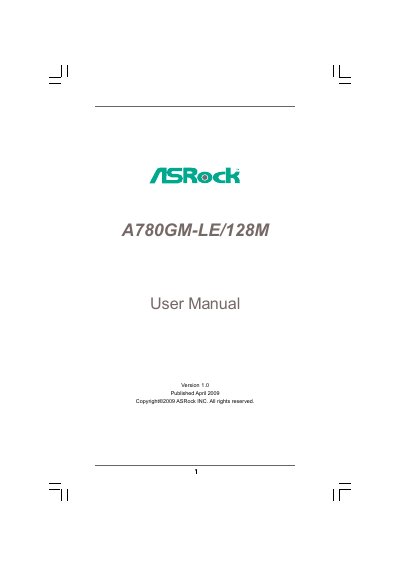

This document is the user manual for A780GM-LE/128M published by ASRock INC. It is version 1.0 and was published in April 2009. The document provides specifications and information about the product, as well as instructions for use.
This manual guides users through installing the ASRock A780GM-LE/128M Micro ATX motherboard, covering CPU, memory, expansion slots, and peripheral connections. It also details BIOS configuration, over‑clocking features, and software support via the included support CD.
Additional sections describe hardware layout, I/O panel connectors, SATA and RAID setup, Windows operating system installation, and troubleshooting tips. Safety warnings and regulatory notices are included throughout.
| Form factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU socket support | Socket AM2+, AM2 and AM3 processors |
| Chipset | Northbridge AMD 780G, Southbridge AMD SB710 |
| Maximum memory | 8 GB DDR2 |
| Memory slots | 2 DDR2 DIMM slots, dual‑channel |
| Expansion slots | 1 × PCI‑E x16, 1 × PCI‑E x1, 2 × PCI |
| Integrated graphics | AMD Radeon HD 3200, up to 512 MB shared |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
| SATA ports | 6 × Serial ATA II 3.0 Gb/s connectors (RAID supported) |
| BIOS | 8 Mb AMI BIOS |
The motherboard supports up to 8 GB of DDR2 memory.
There are six SATA II 3.0 Gb/s connectors, supporting RAID.
It supports Socket AM2+, AM2 and AM3 processors.
It includes an AMD Radeon HD 3200 integrated graphics processor.
