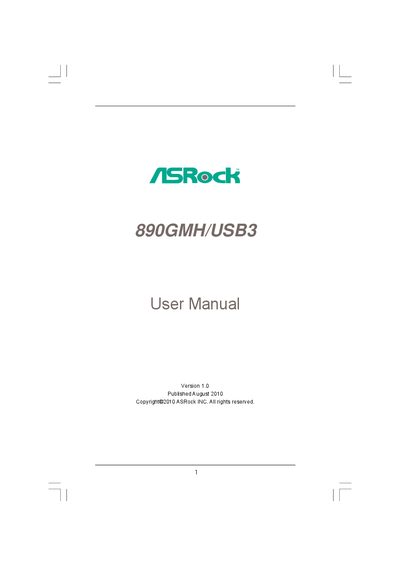

ASRock 890GHM/USB3 user manual

This manual is the user manual for 890GMH/USB3 mainboard

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 62
File format: PDF
File size: 829 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: 890GMH, USB3
MD5 checksum: BDDE18B8CFE212DD58E7CFBD5BA65AB6
PDF: ASRock 890GHM/USB3 user manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock 890GMH/USB3 motherboard, including package contents, hardware layout, BIOS options, and software support. It also lists detailed specifications such as CPU support, memory capacity, and I/O ports.

The document includes safety notices, FCC compliance information, and troubleshooting guidance, making it a complete reference for end‑users and technicians working with this board.

What's inside

Package Contents
Specifications
Motherboard Layout
Installation Guide
BIOS Setup Utility
Software Support
I/O Connectors
Safety and Compliance

Specifications

Form factor	Micro ATX (9.6" x 9.0")
CPU socket	Socket AM3
Chipset	Northbridge AMD 890GX, Southbridge AMD SB710
SATA connectors	5 Serial ATAII 3.0 Gb/s ports (RAID supported)

Frequently asked questions

Which Windows operating systems are supported by the 890GMH/USB3 motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, Windows XP, XP Media Center and XP 64‑bit.

What video output ports are available on the board?

The board provides three video outputs: a VGA/D‑Sub port, a DVI‑D port, and an HDMI port.

How many USB 3.0 ports does the motherboard have?

It includes one USB 3.0 port.

What LAN speed does the 890GMH/USB3 support?

The board features a Gigabit LAN controller supporting 10/100/1000 Mb/s.
