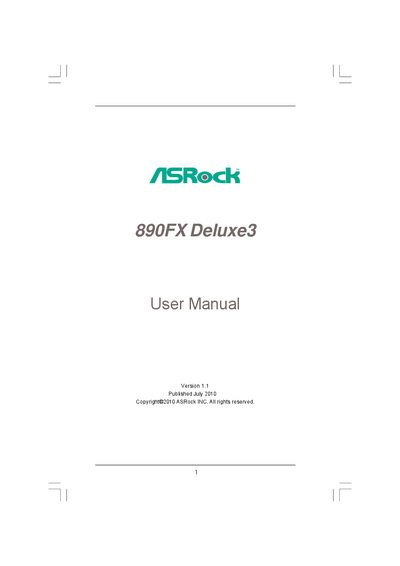

This is the user manual for 890FX Deluxe3.
This manual introduces the ASRock 890FX Deluxe3 motherboard, covering its specifications, package contents, and step‑by‑step hardware installation procedures. It also explains BIOS configuration, driver installation, and the support CD utilities.
Key sections include CPU and memory installation, expansion slot usage, SATA3 and USB 3.0 connections, BIOS setup utility, and operating system installation guidance for supported Windows versions.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| CPU Socket | Socket AM3 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Chipset | AMD 890FX (Northbridge) / AMD SB850 (Southbridge) |
| SATA3 Connectors | 6 x SATA3 6.0 Gb/s |
| USB 3.0 Ports | 4 x USB 3.0 |
| LAN Controller | Realtek RTL8111E Gigabit |
| Audio Codec | VIA VT2020 |
It supports Socket AM3 processors, including AMD Phenom II, Athlon II, and Sempron families.
The board provides four DDR3 DIMM slots with a maximum system memory capacity of 16 GB.
There are six SATA3 6.0 Gb/s connectors that support RAID 0/1/0+1/5, NCQ, AHCI, and Hot Plug.
It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, XP, XP Media Center, and XP 64‑bit.
