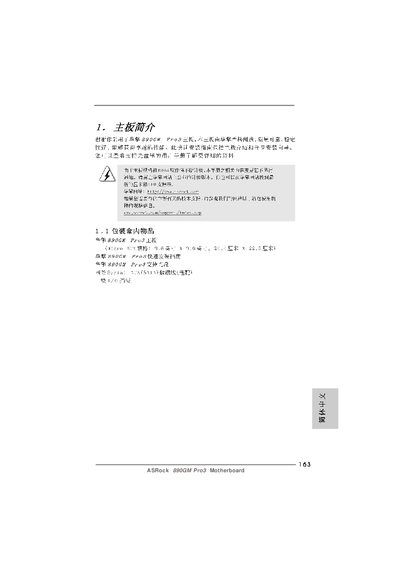

This document is an introduction to the ASRock 890GM Pro3 motherboard, mainly describing its features and characteristics.
This quick installation guide provides step‑by‑step instructions for installing the ASRock 890GM Pro3 Micro ATX motherboard, including safety precautions, CPU mounting, heatsink installation, and BIOS setup. It also points users to additional resources such as driver downloads and support tables.
The board features a Micro ATX form factor (9.6" × 9.0"), Socket AM3 for AMD processors, up to 16 GB of DDR3 memory in dual‑channel mode, a PCI Express x16 slot, PCI Express x1 slot, two PCI slots, integrated Radeon HD 4290 graphics with D‑Sub, DVI‑D and HDMI outputs, and a Realtek Gigabit LAN controller. This manual is written in Chinese.
| CPU socket | Socket AM3 |
|---|---|
| Maximum memory | 16 GB DDR3 (dual‑channel) |
| Integrated graphics | Radeon HD 4290 |
It uses a Socket AM3 compatible with AMD Phenom II, Athlon II, and Sempron processors.
The board supports up to 16 GB of DDR3 memory in dual‑channel mode, with speeds of 1800, 1600, 1333, 1066 and 800 MHz, non‑ECC and un‑buffered.
