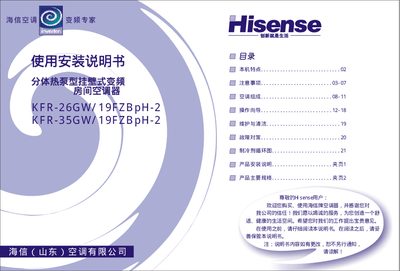

Hisense KFR-26GW / 19FZBpH-2 wall-mounted inverter air conditioner user manual, which introduces the product features, precautions, composition, operation guide, maintenance and cleaning, troubleshooting, refrigerant circulation diagram and other contents
This guide provides step‑by‑step instructions for safely installing the Hisense split‑type heat‑pump air conditioner, covering site preparation, mounting of indoor and outdoor units, refrigerant piping, and electrical connections. It also includes safety warnings, operation mode descriptions, and a summary of the product’s technical specifications.
Follow the illustrated procedures to secure the units, connect the refrigerant lines, wire the power supply, and perform the initial test run. The manual emphasizes the need for qualified personnel, proper grounding, and compliance with local electrical codes to avoid hazards such as electric shock, fire, or equipment damage. This manual is written in Chinese.
| Rated power supply voltage | ac220V |
|---|---|
| Applicable power supply voltage range | ac176V‑253V |
| Rated power frequency | 50 Hz |
| Maximum input current (indoor unit) | 43 A |
