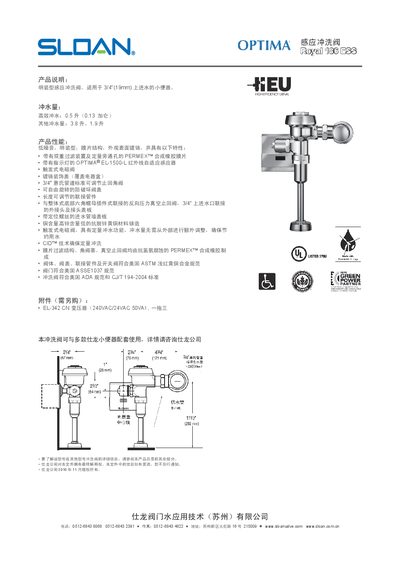

This manual describes the features, performance data and material specifications of the Sloan Royal 186ESS rinse valve. It includes flow rates, pipe dimensions, electrical requirements and compliance with various standards.
Installation guidance, safety notes and part identification are also covered, helping technicians correctly fit and maintain the valve in urinal systems. This manual is written in Japanese.
| High pressure rinse flow | 0.5 (unit unspecified) |
|---|---|
| Other rinse flow | 3.8 and 1.9 (unit unspecified) |
| Electrical transformer rating | 240VAC 4VAC 50VA |
| Inlet pipe diameter | 20 mm |
The high pressure rinse flow rate is 0.5 (unit unspecified) as listed in the manual.
The valve requires an EL-342 CN transformer rated at 240VAC, 4VAC and 50VA.
The inlet pipe diameter is specified as 20 mm.
