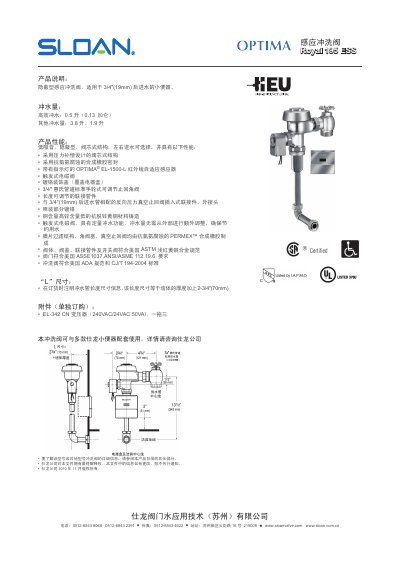

This document is a description of the Royal 195 ESS sensor flush valve produced by Sloan Company. It introduces the features and performance of the product, including flush volume, product performance, water valve length, accessories, etc.
The Royal 195 ESS is a concealed sensor flush valve designed for 3/4" (19 mm) rear‑entry urinals. It offers a high‑efficiency 0.5 L flush and optional 1.9 L or 3.8 L flush volumes, low noise operation, and a valve‑core structure with pressure‑compensated design.
The valve incorporates an OPTIMA® EL‑1500‑L infrared adaptive sensor, a trigger‑type solenoid valve, and corrosion‑resistant synthetic‑rubber seals. It meets U.S. ASTM brass standards, ASSE1037, ANSI/ASME 112.19.6, ADA requirements, and CJ/T 194‑2004, and is supplied with optional accessories such as a transformer and adjustable stop‑check valve. This manual is written in Chinese.
| High‑efficiency flush volume | 0.5 L (0.13 gal) |
|---|---|
| Other flush volumes | 1.9 L or 3.8 L |
| Infrared sensor | OPTIMA® EL‑1500‑L |
| Standards compliance | ASTM, ASSE1037, ANSI/ASME 112.19.6, ADA, CJ/T 194‑2004 |
The valve provides a high‑efficiency flush of 0.5 L (0.13 gal).
It complies with U.S. ASTM brass standards, ASSE1037, ANSI/ASME 112.19.6, ADA, and CJ/T 194‑2004.
