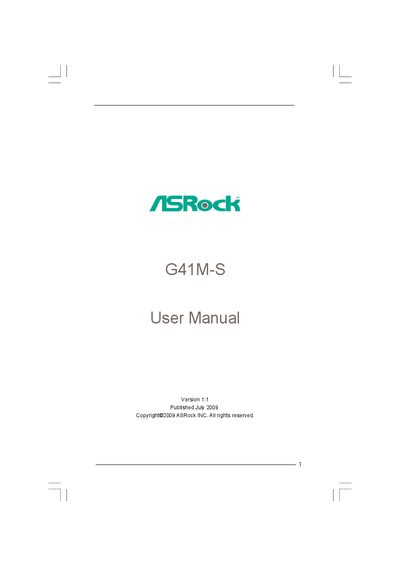

This manual introduces the features and characteristics of the ASRock G41M-S motherboard.
This manual covers everything needed to install and configure the ASRock G41M-S motherboard, including package contents, hardware layout, and step‑by‑step installation of CPU, memory, and expansion cards. It also details BIOS configuration options, overclocking cautions, and software support provided on the accompanying support CD.
Additional sections describe supported operating systems, connector pin‑outs, power and cooling connections, and troubleshooting tips. The document complies with FCC and California regulations and includes warranty and liability notices.
| Form Factor | Micro ATX (9.6" x 7.6") |
|---|---|
| CPU Socket | LGA 775 |
| Chipset (Northbridge) | Intel® G41 |
| Chipset (Southbridge) | Intel® ICH7 |
| Memory Slots | 2 x DDR2 DIMM slots |
| Maximum Memory | 8 GB |
| Expansion Slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1, 2 x PCI |
| SATA Connectors | 4 x SATAII 3.0 Gb/s |
| LAN | Realtek PCIE x1 LAN 8103EL / 8102EL (10/100 Ethernet, Wake‑On‑LAN) |
| BIOS | 8 Mb AMI BIOS |
It uses an LGA 775 socket.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
There are four SATAII 3.0 Gb/s connectors.
The board can handle up to 8 GB of DDR2 memory.
