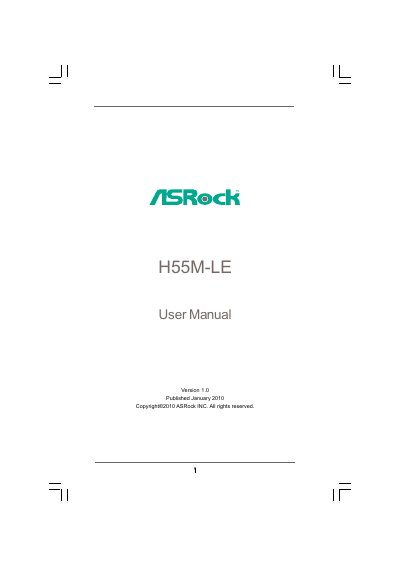

This document is the user manual for ASRock H55M-LE, version 1.0, published in January 2010. It provides specifications and information about the product, but does not constitute any warranty from ASRock.
This manual introduces the ASRock H55M-LE Micro ATX motherboard, covering its package contents, key features, and safety warnings. It guides users through hardware installation, BIOS setup, and software support.
Detailed sections include specifications, motherboard layout, I/O panel description, SATA and HDMI connections, over‑clocking technology, and troubleshooting tips, helping both beginners and experienced builders configure the system correctly.
| Form Factor | Micro ATX (9.6‑in x 8.0‑in) |
|---|---|
| CPU Socket | LGA1156, supports Intel Core i7/i5/i3 and Pentium G6950 |
| Memory | 2 DDR3 DIMM slots, max 8 GB, DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 |
| SATA Connectors | 4 SATAII 3.0 Gb/s connectors with NCQ, AHCI, Hot Plug |
| Audio | 7.1‑channel HD Audio (VIA VT1718S codec) |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
The board provides four SATAII 3.0 Gb/s connectors that support NCQ, AHCI, and hot‑plug functions.
