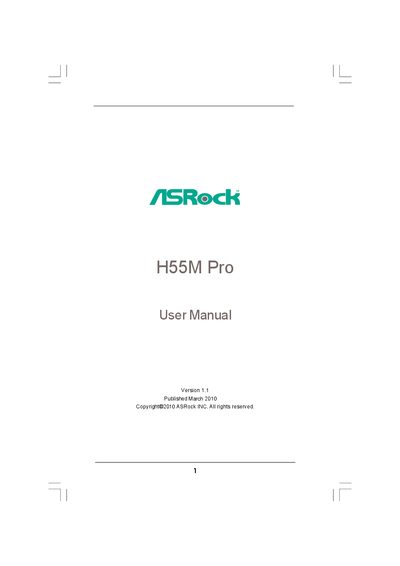

This document is the user manual for ASRock INC.'s H55M Pro, version 1.1, published in March 2010. The manual provides instructions and information about the features of the H55M Pro motherboard.
This manual introduces the ASRock H55M Pro motherboard, outlines its package contents, and explains the layout, I/O panel, and connector options. It also details safety notices, warranty information, and regulatory compliance.
Key sections cover step‑by‑step hardware installation, BIOS Setup Utility configuration, driver and utility installation from the Support CD, and troubleshooting guidance. The document also includes specifications, overclocking cautions, and contact information for technical support.
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Support | Intel Core i7/i5/i3 and Pentium G6950 (LGA1156) |
| Audio Codec | VIA VT1718S, 7.1‑channel HD Audio |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| SATA Connectors | 5 SATAII 3.0 Gb/s ports (NCQ, AHCI, Hot Plug) |
It supports Intel Core i7, i5, i3 and Pentium G6950 processors in the LGA1156 package.
Yes, it features a Realtek RTL8111DL Gigabit LAN controller supporting 10/100/1000 Mb/s.
