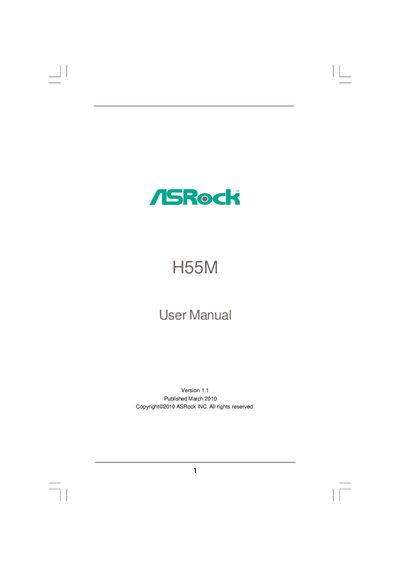

ASRock H55M User Manual

This is a user manual for H55M motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 58
File format: PDF
File size: 730 KB
Published: 15 March, 2012
Updated: 01 October, 2023
Model: H55M
MD5 checksum: AE8D55EE87D7CF04E099C4D4ADA8120A
PDF: ASRock H55M User Manual PDF

About this manual

This manual introduces the ASRock H55M Micro‑ATX motherboard, lists the package contents, and details step‑by‑step hardware installation such as CPU, memory, and expansion cards. It also includes the BIOS Setup Utility guide and explains the features of the support CD.

Later sections cover operating‑system installation, driver and utility installation from the support CD, and contact information for technical support. The document ends with BIOS exit options and safety warnings for overclocking.

What's inside

Package Contents
Specifications
CPU Installation
Memory Installation
Expansion Slots
BIOS Setup Utility
Software Support
Support CD

Specifications

Form Factor	Micro ATX
CPU Socket	LGA1156
Chipset	Intel H55
Memory Slots	2 x DDR3 DIMM
Maximum Memory Capacity	8 GB
SATA Connectors	4 x SATAII 3.0 Gb/s

Frequently asked questions

Which Windows operating systems are supported by the H55M motherboard?

The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and XP/XP 64‑bit.
