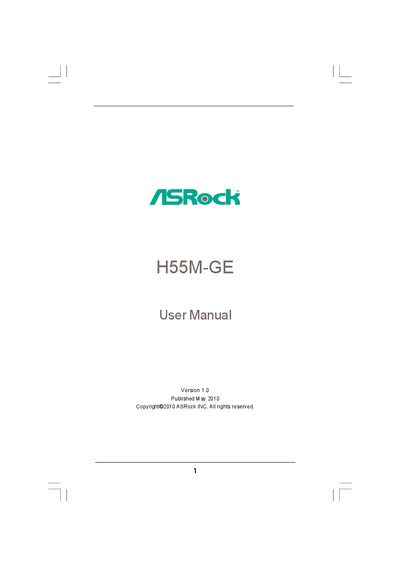

This document is the user manual for the ASRock H55M-GE motherboard, providing specifications and information about the motherboard.
This manual guides you through the hardware installation of the ASRock H55M‑GE motherboard, covering package contents, CPU and memory installation, expansion slots, and connector layout. It also details BIOS configuration, over‑clocking features, and software support via the included support CD.
Additional sections explain supported operating systems, driver installation, and troubleshooting tips, with safety warnings and regulatory notices for FCC and California compliance.
| Form Factor | Micro ATX (9.6 in x 8.7 in) |
|---|---|
| CPU Socket | LGA1156 |
| Chipset | Intel® H55 |
| Memory Slots | 4 x DDR3 DIMM |
| Maximum Memory | 16 GB |
| SATA Ports | 6 x SATAII 3.0 Gb/s |
| LAN | Realtek RTL8111E Gigabit Ethernet |
The motherboard supports Microsoft® Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, Windows XP and Windows XP 64‑bit.
There are six ready‑to‑use USB 2.0 ports on the rear panel.
Yes, it includes Untied Overclocking Technology, OC Tuner, and other over‑clocking utilities, but users are warned of the risks.
The board uses the VIA® VT1705 audio codec for 5.1‑channel HD audio.
