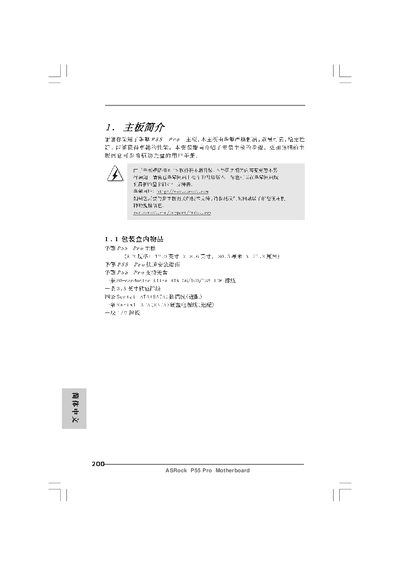

ASRock P55 Pro Motherboard User Manual

This document describes the features and characteristics of the ASRock P55 Pro motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 23
File format: PDF
File size: 1.5 MB
Published: 15 March, 2012
Updated: 28 September, 2023
Model: P55
MD5 checksum: 05790DAC05044D021EA8D05677386048
PDF: ASRock P55 Pro Motherboard User Manual PDF

About this manual

This manual covers the P55 Pro motherboard’s specifications, including ATX form factor, LGA1156 socket, DDR3 memory support up to 16 GB, and multiple PCI‑Express and SATA interfaces. It also details audio (Realtek ALC892) and networking (Realtek RTL8111E Gigabit LAN) features.

Installation instructions guide users through CPU and heatsink mounting, power‑connector connections, and safety precautions such as grounding and static‑discharge protection. BIOS and hardware‑monitoring utilities are described, along with troubleshooting tips. This manual is written in Chinese.

What's inside

Specifications
CPU Installation
Safety Precautions
BIOS Features
Hardware Monitoring
Audio and LAN
PCI Express Slots
Memory Support
Installation Guide

Specifications

Form factor	ATX (12.0 in × 8.6 in)
CPU socket	LGA1156
Maximum DDR3 memory	16 GB
Supported DDR3 speeds	2600/2133/1866/1600/1333/1066 MHz
LAN controller	Realtek RTL8111E Gigabit Ethernet (10/100/1000 Mb/s)

Frequently asked questions

What CPU socket does the P55 Pro motherboard use?

It uses an LGA1156 socket.

How much DDR3 memory can be installed?

The board supports up to 16 GB of DDR3 memory.

What are the LAN capabilities of the motherboard?

It includes a Realtek RTL8111E Gigabit Ethernet controller supporting 10/100/1000 Mb/s.
