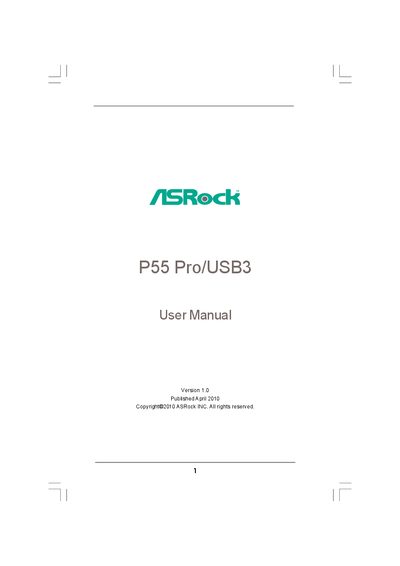

ASRock P55 Pro/USB3 User Manual

P55 Pro/USB3 User Manual, introduces the features and characteristics of the product.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 66
File format: PDF
File size: 1 MB
Published: 15 March, 2012
Updated: 30 September, 2023
Models: P55, USB3
MD5 checksum: 1E12612BFA5583BB8335804D5EB91CCB
PDF: ASRock P55 Pro/USB3 User Manual PDF

About this manual

This manual guides you through installing the ASRock P55 Pro/USB3 motherboard, including package contents, CPU and memory installation, and connecting peripherals. It also covers BIOS configuration, overclocking features, and troubleshooting.

Later sections describe supported operating systems, driver installation from the Support CD, and detailed specifications such as chipset, memory capacity, expansion slots, and I/O ports.

What's inside

Package Contents
Specifications
Installation Guide
BIOS Setup Utility
Software Support
Supported Operating Systems
RAID Configuration
Safety and Warranty

Specifications

Form Factor	ATX (12.0" x 8.6")
CPU Support	Intel Core i7/i5/i3, Pentium G6950 (LGA1156)
Chipset	Intel® P55
Memory Slots	4 x DDR3 DIMM
Maximum Memory	16 GB
SATA Connectors	7 × SATA II 3.0 Gb/s (RAID support)
BIOS	16 Mb AMI BIOS

Frequently asked questions

Which Windows operating systems are supported by this motherboard?

The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP and XP 64‑bit.

Does the motherboard support RAID configurations?

Yes, it supports RAID 0, RAID 1, RAID 10, RAID 5, JBOD, and Intel Rapid Storage.

What type of BIOS does the board use?

It uses a 16 Mb AMI BIOS.
