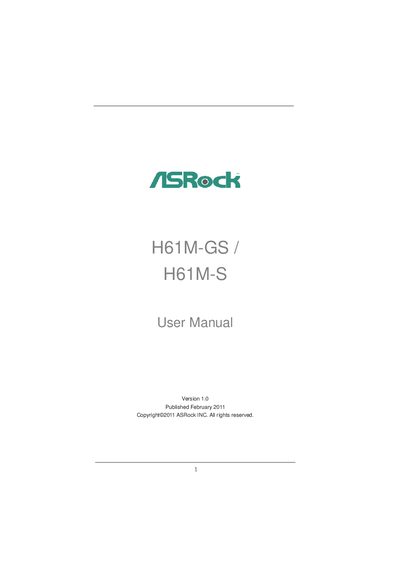

This document is the user manual for ASRock H61M-GS / H61M-S motherboard. The manual provides detailed information about the features and characteristics of the product.
This manual covers everything needed to install and configure the ASRock H61M‑GS / H61M‑S motherboard, including package contents, hardware layout, CPU and memory installation, and detailed BIOS (UEFI) settings. It also includes a support CD guide with driver and utility installation instructions.
Additional sections describe supported operating systems, UEFI boot procedures for large‑capacity drives, and safety notices. The document is organized with a table of contents, clear step‑by‑step instructions, and reference tables for specifications and connectors.
| Form Factor | Micro ATX (9.6‑in x 7.8‑in) |
|---|---|
| CPU Support | 2nd Gen Intel® Core™ i7 / i5 / i3 LGA1155 |
| Chipset | Intel® H61 |
| Audio Codec | Realtek ALC662 5.1‑channel HD Audio |
| SATA Connectors | 4 × SATA2 3.0 Gb/s (NCQ, AHCI, Hot Plug) |
The board supports Microsoft® Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and XP/XP 64‑bit.
It uses an Atheros® PCIE x1 Gigabit LAN controller (AR8151).
The rear panel provides six USB 2.0 ports.
