Freescale TWR‑K40X256 Tower Module User Manual

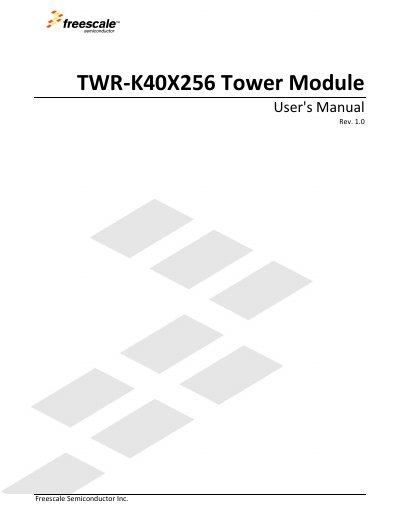

Freescale TWR‑K40X256 Tower Module User Manual - cover page
Brand
Freescale
Category
Other Electronics
Document type
User Manual
Language
English
Pages
21
File format
PDF
File size
1.8 MB
Published
14 March, 2012
Updated
29 September, 2023
MD5 checksum
E2AD2D82A184E34411691ECF68AB8ACB

About this manual

This manual introduces the TWR‑K40X256 Tower Module, a stand‑alone or kit‑based development platform for Kinetis K30/K40 microcontrollers. It describes the module’s features, including the MK40X256VMD100 MCU, segment LCD plug‑in, accelerometer, LEDs, touch pads, and expansion connectors.

The document details hardware sections such as clocking, system power, debug interfaces (OSJTAG and Cortex Debug+ETM), connector pin‑outs, jumper settings, and tower‑elevator connections, along with reference documents and getting‑started guidance.

What's inside

  • Overview
  • Getting Started
  • Reference Documents
  • Hardware Description
  • Jumper Table
  • I/O Connectors and Pin Usage
  • Clocking
  • System Power
  • Debug Interface
  • Tower Elevator Connections

Specifications

MicrocontrollerMK40X256VMD100 (ARM Cortex‑M4)
Core Frequency100 MHz maximum
Program Flash256 KB
Operating Voltage1.71 V – 3.6 V
Package144‑lead MAPBGA, 13 mm × 13 mm

Frequently asked questions

What microcontroller does the TWR‑K40X256 use?

It uses the MK40X256VMD100, a 32‑bit ARM Cortex‑M4 core device.

How is the module powered in stand‑alone mode?

Power is supplied from a 5.0 V source via the USB mini‑B connector, a low‑dropout regulator then provides 3.3 V to the MCU.

What debug interfaces are available on the TWR‑K40X256?

The module provides an on‑board OSJTAG circuit and an external Cortex Debug+ETM connector for debugging.

Which connectors allow the module to connect to Tower elevator boards?

The Primary and Secondary Elevator connectors on the module provide the interface to Tower elevator boards.
